HAMMER HOGS. Severe Duty.


Salem Hammer Hogs are designed, engineered, and manufactured for severe duty and long life. Our reversable hammers come standard or with reversable tips. Either way, the hammers are impregnated with Tungsten Carbide giving them incredible durability.

In addition to mechanical performance and ruggedness, our standard design also takes into consideration maintenance and operational access by the use of french-doors on the upper housing and easy to replace grates in the lower housing. Additionally, our grates are inclined for smoother material discharge. We have also extended lower framework for more open discharge.


salem equipment hammer hog
Hammer Hog | Model SR-50

Related Systems:

Disc Screens Chip Screens Slabbers

RUGGED DURABILITY

Tungsten Carbide Imbedded (TCI) Hammers & Anvils
  • Longer life in extreme duty or abrasive applications.
  • Provides some cutting action for process of stringy material.
  • Reversable for longer life.
Wear Plates
  • Bolt access from outside of machine for easier maintenance.
  • Replaceable.

EASY MAINTENANCE

French Style Access Doors
  • Improved safety and maintenance access.
Shaft Bearing Access Box
  • Easy access to shaft bearing for servicing.
Grates
  • Easy to access and replace.
  • Grate openings are wider at discharge for smoother material flow.



CAPACITY


Hammer Hogs are available in a variety of sizes based upon the amount of volume and type of material to process and the infeed opening.

Each size of Salem Hammer Hog can handle occasional incremental surge volume of 20% more than capacity.


Model Numbers


SR-30

Up to 30 tons per hour capacity.


SR-40

Up to 40 tons per hour capacity.


SR-50

Up to 50 tons per hour capacity.



TECHNICAL SPECIFICATIONS

MODEL SR30-E9 SR40-E9 SR50-E9
Approx. Max. Capacity 30 tons/hour 40 tons/hour 50 tons/hour
Feed Opening 24” x 27” 36” x 27” 45” x 27”
Discharge Opening 24” x 58” 36” x 58” 58” x 58”
Rotor Shaft Diam. 7 1/2” 7 1/2” 7 1/2”
Bearing Diam. 5 7/16” 5 7/16” 5 7/16”
Hammer Size 3 3/8” x 7” 3 3/8” x 7” 3 3/8” x 7”
Hammer Weight 47lbs 47lbs 47lbs
Number of Hammers 10 14 18
Hammer Pin Diam. 2 7/16” 2 7/16” 2 7/16”
Rotor Disc Thickness 1” & 3” 1” & 3” 1” & 3”
Wear Liners 1” thick 1” thick 1” thick
Grate Opening Variable Variable Variable
Product Size 2.5” minus 2.5” minus 2.5” minus
Approx. Weight 12,000 lbs 14,000 lbs 15,100 lbs
Min. Horsepower 150 200 250

Contact us for more details.
PHONE (503) 581-8411

COMPONENTS

Following are a few highlights:

HAMMERS

Tungsten Carbide Imbedded (TCI)

Reversable for longer life.

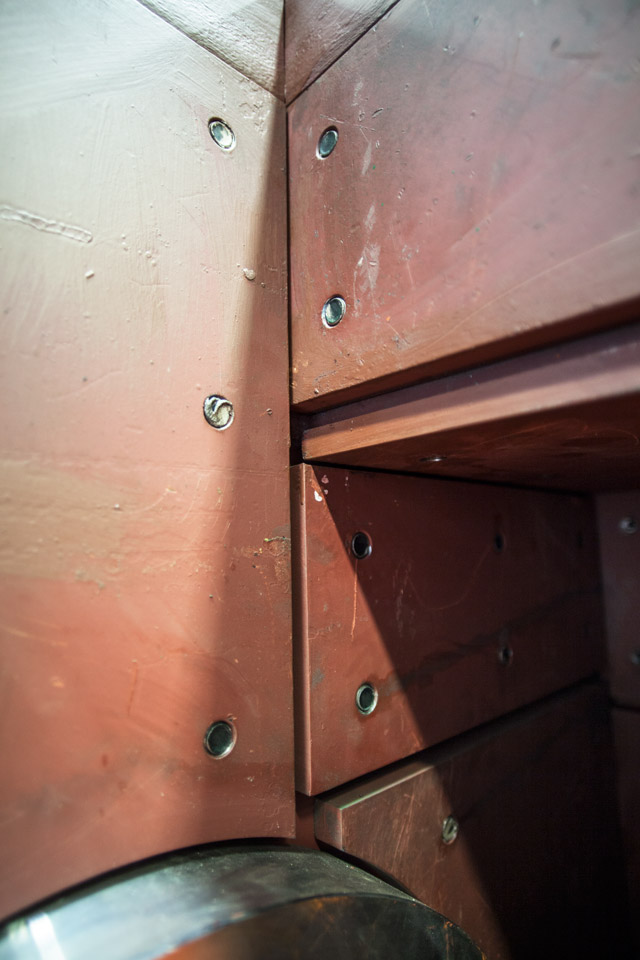

WEAR PLATES

Bolt access from outside of machine for easier maintenance.

ANVILS

Tungsten Carbide Imbedded (TCI)

Reversable for longer life.

SPACER DISCS

Long lasting 1" machined plate steel.

GRATES

Sectioned for easy maintenance.

ROTOR ASSEMBLY

With protective sleeves on hammer pins for reduced maintenance.

INSPECTION DOORS

Exterior bolt access.
